當前位置：主頁>產品列表>干燥蒸發設備>單錐真空干燥機（CE）

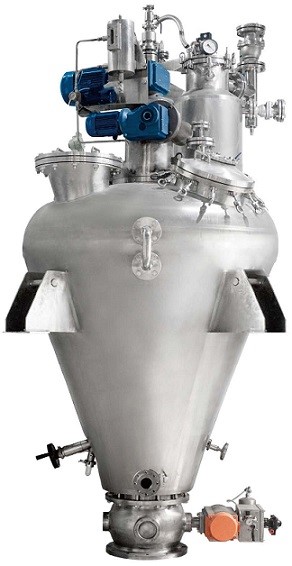

單錐真空干燥機（CE）
Single Conical Spiral Vacuum Drying Equipment (CE Approved)

1. 概述( Description )：
單錐螺旋真空干燥機是一種夾套加熱傳導型間隙式干燥設備，是在藥品生產中廣泛應用的真空干燥設備，該干燥設備具備真空干燥和攪拌混合雙重功能。物料從頂部進料口加入后，關閉進料口，啟動加熱系統、真空系統、攪拌系統，物料在垂直錐形螺旋的提升下向上運動，錐體內壁熱量與物料充分接觸，物料以及內部濕分溫度升高，在真空狀態下，濕分的沸點降低，低溫狀態下蒸發出來的濕分被真空系統抽出，完成干燥過程。
Single-conical spiral vacuum dryer is a jacket conduction heating batch mode drying equipment, it is widely used vacuum drying equipment in the pharmaceutical production, the drying equipment with vacuum drying and mixing double function. After the material is added from the top inlet , the feed inlet is closed, the heating system is started, the vacuum system, the stirring system, the vertical conical shape screw is rotating , The material moves upwards under the spiral lifting, The inner wall of the cone in full contact with the material, the material and the internal wetting temperature increases, in the vacuum state, the boiling point of moisture decreased , evaporation of the moisture been taken out by vacuum under low temperature , then complete the drying process.

2. 特點( Featurs)：
單臂螺旋錐形真空干燥機適宜于GMP車間使用，本機具有的高效干燥混合能力是Double conical vacuum dryer的3-4倍，物料裝填率在10%-100%可正常工作，與干燥機直接相連的過濾器能夠?qū)m粒保留在加工區域內，本機采用充氣密封圓頂閥，卸料徹底、便捷，出色的真空、耐壓密封性能，無死角、易清潔設計，性能穩定、使用壽命長，能夠毫無損失地加工產品。
全封閉式系統
產品攪拌柔和，循環性好
使用多種材料和技術，以實現安全可靠的密封
機械剪切力低 干燥時間短，能耗低
精度高，攪拌效果好，可再生性強
無污染氣體泄漏
適用于生產各種工藝產品，用途廣泛
依據產品特性調節速度
可靈活分載（10-100%），對產品質量無影響
使用加熱攪拌螺旋軸，來縮短干燥時間
固體卸料和清洗液排放無殘留 保證產品、操作員及生產環節的安全
在線清洗高效簡單，排放徹底
能靈活用于多種產品加工
Single- conical spiral vacuum dryer suit for use in the GMP workshop, the machine has a high dry & mixing efficiency , The dryer directly connected to the filter can retain the dust in the processing area, the machine uses inflatable sealed dome valve, discharge thoroughly, convenient, excellent vacuum, pressure sealing performance, no dead ends, easy to clean design, performance Stable, long service life, able to handle products without loss.
Full Cantilever Conical Stirring Screw
Fully enclosed system
Product mixing under slow speed , well distributed
Use a variety of materials and techniques to achieve a safe and reliable seal
Low mechanical shear force
Short Drying time , low energy consumption
High precision, good mixing effect, strong renewable
No pollution gas leaks
Applicable to the various products, widely used
Adjust the speed according to product characteristics
Can be flexible load rate (10-100%), no affect on product quality
Use the heating screw shaft to shorten the drying time
Solid discharge and cleaning fluid discharge without residue
To ensure the safety of products, operators and production processes
CIP is simple and efficient, thoroughly discharge
Can be used for a variety of products processing

3. 應用范圍(Scope of application)：

有流動性的產品：粉末、顆粒、晶體等
Flowable products: powder, particles, crystals and other
危險物質
dangerous material
對機械處理和高溫敏感的產品
For mechanical handling and high temperature sensitive products???????????????????????????????????????
易燃物和爆炸性粉末
Flammable and explosive powders
氧化作用下易分解的產品
Oxidized products are easily decomposed
沾有可燃溶液的產品

4、技術參數Technical parameter

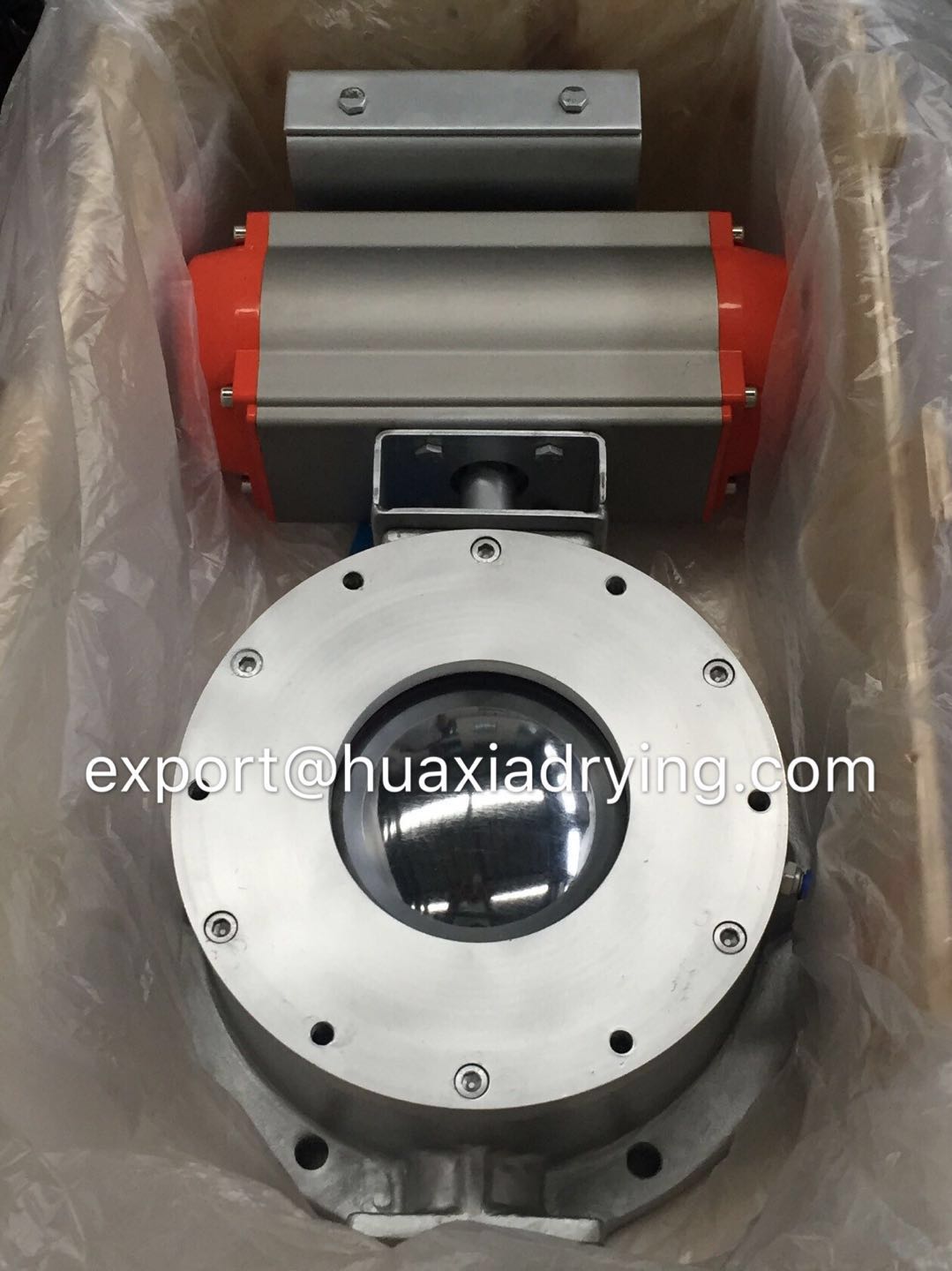

5、出料閥(充氣圓頂閥)Discharge valve(Inflatable dome valve)
