節能干燥機--FZG/YZG系列方形/圓形真空干燥機（通過歐盟CE & PED認證）
Energy Saving Drying Equipment --Square/Round Vacuum Dryer
(CE&PED Approved)
1.概述Descriptions

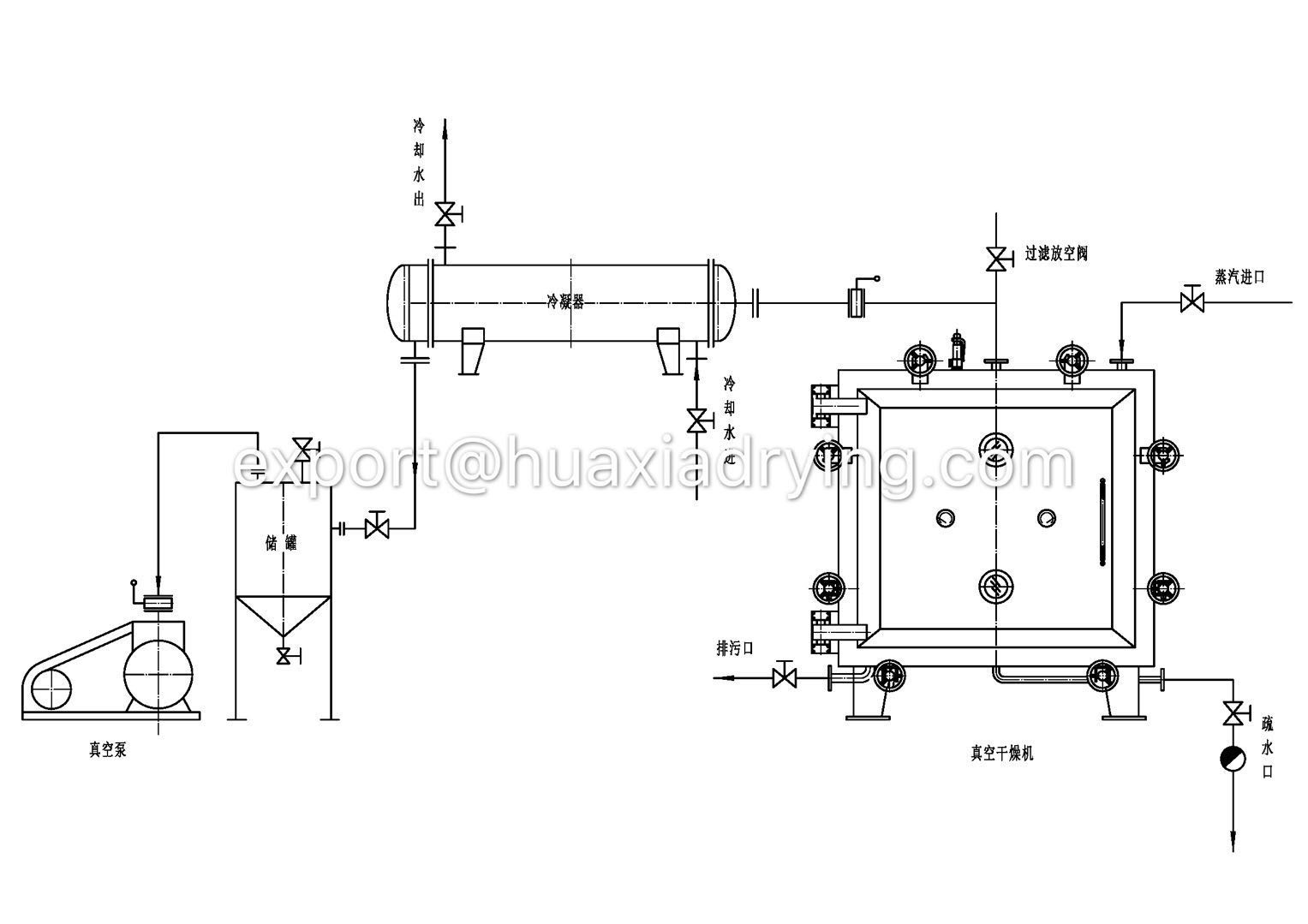

FZG/YZG系列真空干燥機是我公司在結合同類設備技術的基礎上開發的新一代干燥裝置。 整個系統包括真空干燥箱，儀表，真空系統，熱源，控制柜等
FZG/YZG Series Vacuum Dryer is a new generation drying device developed by our factory on the basis of combining the technology of similar equipment. The whole system include vacuum drying room , instrument gauge ,vacuum system , heat source , control cabinet ,etc…
2.工作原理Principle
濕物料平鋪在托盤上，托盤放置于干燥箱內的夾套加熱輻射板上面，熱量通過輻射板傳遞給托盤內的物料，蒸發出來的濕分被真空系統抽出排放，達到干燥的目的，由于在真空狀態下大部分物料的沸點會降低，所以真空干燥機適合干燥那些需要低溫干燥的物料。
Raw material with moisture (solvent) tiling on the tray , tray was putting on the heating jacket plate ,heating media transfer the heat to the material , moisture(solvent) evaporated and being removed by vacuum system discharged as exhaust , then the material being dried , since most of material has low boiling point in vacuum condition , the vacuum dryer suit for the material which need low drying temperature .
3.應用Applications
適用于化工，制藥，食品等行業需要在低溫狀態下濃縮、混合干燥的原料（如生物化學）。 特別適用于容易被氧化，揮發，具有光敏感性且具有毒性，不允許在干燥過程中破壞晶體的原料。
◆不耐高溫的熱敏原料。 ◆采用溶劑和危險氣體的材料。
◆危險且容易氧化的材料?！魮]發性殘留含量低的材料。
◆對晶體形狀有特殊要求的材料。
It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, pharmaceutical and foodstuff industries. It is particularly suitable for the raw materials that are easy to be oxidized, volatilized and have light sensitivity and is toxic and not permitted to destroy its crystal in drying process.
◆ Thermal sensitive raw materials that cannot stand high temperature.
◆ Materials with solvent and dangerous gases to be collected.
◆ Materials that are dangerous and easy to oxidize.
◆ Materials that require low content of volatile residual.
◆ Materials that have special requirements for crystal shape.
4.技術參數Technical Parameters
規格Model |
YZG-600 |
YZG-800 |
YZG-1000 |
YZG-1400A |
FZG-10 |
FZG-15 |
FZG-20 |
箱內尺寸Inner size（mm） |
φ600×976 |
φ800×1247 |
φ1000×1527 |
φ1400×2054 |
1500×1060× |
1500×1400 |
1500×1800 |
箱外尺寸Outside size（mm） |
1135×810× |
1700×1045× |
1693×1190× |
2380×1675×1920 |
1924×1720 |
1513×1924 |
1924×2500 |
烘架層數Tray level |
4 |
4 |
6 |
8 |
5 |
8 |
12 |
層間距離Distance between tray level（mm） |
81 |
82 |
102 |
102 |
122 |
122 |
122 |
烘盤尺寸Tray size（mm） |
310×600×45 |
520×410×45 |
520×410×45 |
460×640×45 |
460×640 |
460×640 |
460×640 |
烘盤數Tray number |
4 |
8 |
12 |
32 |
20 |
32 |
48 |
管內使壓Working pressure in pipe（MPa） |
≤0.784 |
≤0.784 |
≤0.784 |
≤0.784 |
≤0.784 |
≤0.784 |
≤0.784 |
使用溫度Working Temperature（℃） |
35-150 |
35-150 |
35-150 |
35-150 |
35-150 |
35-150 |
35-150 |
箱內空載真空度pressure in dryer（MPa） |
-0.1 |
-0.1 |
-0.1 |
-0.1 |
-0.1 |
-0.1 |
0.1 |
在-0.1MPa，加熱溫度110℃ |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
用冷凝器時，真空泵型號、 |
2X-15A 2KW |
2X-30A 3KW |
2X-30A 3KW |
2X-70A 5.5KW |
2X-70A 5.5KW |
2X-70A 5.5KW |
2X-90A 2KW |
不用冷凝器時， |
SZ-0.5 1.5KW |
SZ-1 2.2KW |
SZ-1 2.2KW |
SZ-1 2.2KW |
SZ-2 4KW |
SZ-2 4KW |
SZ-2 5.5KW |
干燥箱重量Weight of dryer |
250 |
600 |
800 |
1400 |
1400 |
2100 |
3200 |
