當前位置：主頁>產品列表>干燥蒸發設備>輥筒刮板干燥機（CE）

輥筒刮板干燥機（CE）
HG Series Drum Drying Equipment (CE Approved)

1. 概述( Description )：

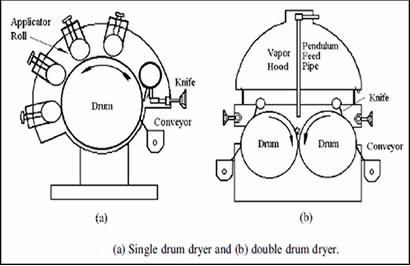

滾筒干燥機是一種內加熱傳導型轉動連續干燥設備。旋轉的滾筒通過其下部料槽，沾附著一定厚度的料膜，熱量通過管道輸送至滾筒內壁，傳導到滾筒外壁，再傳導給料膜，使料膜中的濕分得到蒸發。干燥好的物料被裝置在滾筒表面的刮刀鏟起離開輥筒，到置于刮刀下方的螺旋輸送器，通過螺旋輸送器將干物料輸送到包裝系統。
Drum dryer is a kind of rotating continuous drying equipment with internal heating function . Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.

2. 特點( Featurs)：
2.1.熱效率高。因滾筒干燥機傳熱機理屬熱傳導，傳熱方向在整個操作周期中保持一致，除蓋散熱和熱輻射損失外，其余熱量全部都用于筒料膜濕分的蒸發上，熱效率可達70%-80%。
High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2.2.操作彈性大，適用性廣?？烧{(diào)整滾筒干燥機的諸多干燥因素。如進料的濃度、涂料料膜的厚度、加熱介質的溫度、滾筒的轉動速度等，都可以改變滾筒干燥機的干燥效率，且諸多因素互無牽連。這給滾筒干燥操作帶來很大的方便，使之能適應多種物料的干燥和不同產量的要求。
Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry various materials and to meet different requirements of production.
2.3 .干燥時間短。物料的干燥周期一般只有10-300秒，適合于熱敏性物料。若將滾筒干燥機設置在真空器中，則可在減壓條件下運行。
Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.
2.4 .干燥速率大。由于涂料抹于筒壁的料膜很薄，一般在0.3-1.5mm，且傳熱、傳質方向一致，料膜表面可保持20-70kg·H2O/m2·h 的蒸發強度。
Fast drying rate. As film of materials coated on the wall of the cylinder is very thin. Normal, thickness is 0.3 to 1.5mm, plus directions of heat and mass transmitting are identical, the evaporation strength on the surface of the film can be 20-70 kg.H2O/m2.h.

3. 應用范圍(Scope of application)：

適用于化工、染料、制藥、食品、冶金等行業液體或較粘稠物料的干燥，如變性淀粉，麥片，玉米片等物料的干燥。

適用于需要將原料破碎成顆粒，篩網的孔徑一般在10 -20mm 。

4、技術參數Technical parameter
