當前位置：主頁>產品列表>粉碎研磨設備>不銹鋼顎式破碎機（CE）

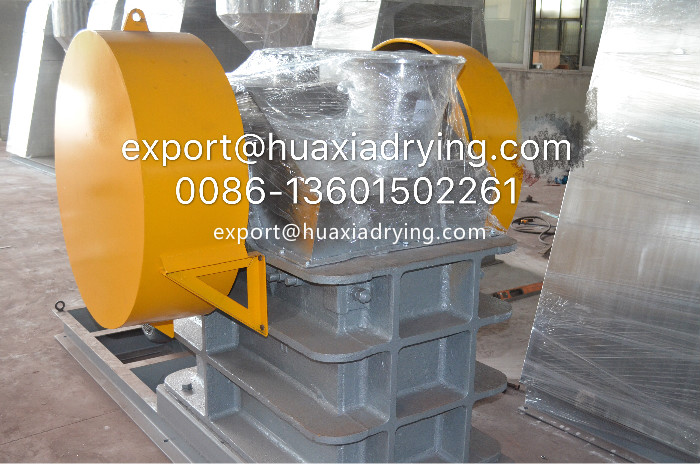

不銹鋼顎式破碎機（CE）
Jaw Crusher ( made of stainless steel )
( CE )
1. 概述( Description )：

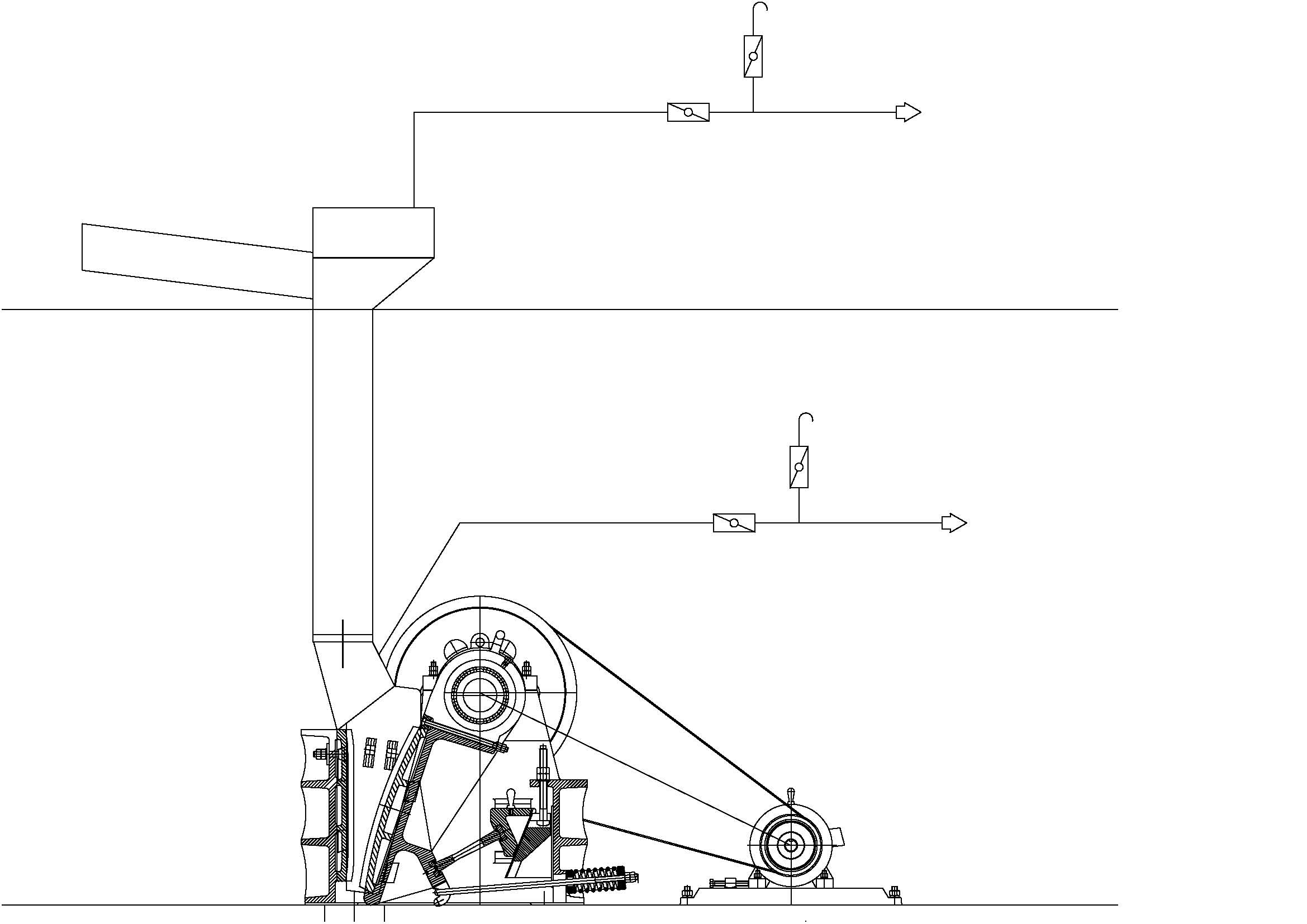

不銹鋼顎式破碎機主要由框架、動顎板、定顎板、調節裝置以及驅動裝置、除塵罩等部分組成。塊狀物料在動顎板和定顎板之間被壓碎成更小的塊，直至小于出口間隙大小，直接從底部出口排出。
Stainless steel jaw crusher is grouped by the frame , fixing jaw plate , floating ?jaw plate, adjusting device and drive system , dust cover and other components. The big briquette material is crushed into smaller pieces between the moving plate and the fixing plate until it is smaller than the size of the discharge gap and is discharged directly from the bottom .2. 原理( Principle )：
電動機驅動皮帶和皮帶輪，通過偏心軸使動顎上下運動，當動顎上升時肘板和動顎間夾角變大，從而推動動顎板向定顎板靠近，此時被破碎的物料被擠壓、搓、碾等多重受力而被破碎。當動顎下行時，肘板和動顎間夾角變小，動顎板在拉桿、彈簧的作用下與定顎板的間距拉大，此時被破碎的物料從破碎腔出料口排出，隨著偏心軸的連續運轉，動顎作周期性的往復運動，進入破碎腔的物料不斷地被破碎、排出，實現連續生產。
The motor drives the belt and the belt pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the included angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw to approach the fixed jaw and the crushed material is squeezed Pressure, rub, grind and other force was broken. When moving the jaw move down, the angle between the bracket and the moving jaw becomes smaller, the moving jaw is widened from the fixed jaw under the action of the pull rod and the spring, and the broken material is discharged from the discharge port of the crushing chamber at this time, With the continuous operation of the eccentric shaft, moving jaw for periodic reciprocating movement, the material into the crushing chamber continue to be crushed, discharged, to achieve continuous production.
3、應用范圍（ Application Scope ）
適用于需要將燒結好的大塊狀物料破碎成小塊狀或顆粒狀，多用于冶金行業燒結后的物料進行多級破碎達到粉末狀的工況，如碳化硅、碳化鎢等，進料粒度：130-500mm，成品粒度15-125mm 。
It is suitable for crushing large agglomerated material into small briquettes or granules . Used for multi-level crushing of the sintered material in the metallurgical industry to reach the powdery condition , Such as silicon carbide, tungsten carbide , etc … , Feed particle size: 130-500mm, finished particle size: 15-125mm.
4、技術參數Technical parameter
型號Model |
給料口尺寸Inlet size |
******給料尺寸Feed in size(max) |
出料口尺寸Discharge size |
生產能力Capacity( t/h) |
電動機功率Power(kw) |
外型尺寸Measurement L×W×H(mm) |
PE150×250 |
150×250 |
130 |
15-45 |
1-4 |
5.5 |
896×745×935 |
PE250×300 |
250×300 |
150 |
15-55 |
3-6 |
7.5 |
1050×987×1000 |
PE250×400 |
250×400 |
210 |
25-60 |
5-20 |
15 |
1215×1520×1030 |
PE400×600 |
400×600 |
350 |
40-90 |
15-60 |
30 |
1650×1588×1050 |
PE500×750 |
500×750 |
425 |
50-100 |
40-110 |
45 |
1956×1918×1920 |
PE600×900 |
600×900 |
500 |
60-125 |
90-180 |
55 |
2250×2733×2280 |
PE800×900 |
800×900 |
600 |
80-140 |
100-220 |
75 |
2450×2950×2490 |
PE750×1060 |
750×1060 |
630 |
60-150 |
110-380 |
110 |
2531×2455×2783 |
PE900×1060 |
900×1060 |
700 |
100-160 |
180-380 |
110 |
2900×2657×2950 |
PE900×1200 |
900×1200 |
750 |
110-165 |
220-450 |
110-132 |
3100×2760×3260 |
PE1200×1500 |
1200×1500 |
950 |
115-195 |
250-500 |
180-220 |
3710×3446×4075 |
PE1500×1800 |
1500×1800 |
1200 |
135-225 |
350-700 |
280 |
5100×4700×4300 |
PEX150×750 |
150×750 |
120 |
10-40 |
5-16 |
15 |
1310×1118×1145 |
PEX250×750 |
250×750 |
210 |
15-50 |
15-30 |
22-30 |
1400×1751×1515 |
PEX350×750 |
350×750 |
300 |
15-50 |
18-40 |
30 |
1485×1680×1648 |
PEX250×1000 |
250×1000 |
210 |
15-60 |
15-60 |
30 |
1550×1964×1380 |
PEX250×1200 |
250×1200 |
210 |
15-60 |
20-60 |
37-45 |
1530×1946×1380 |
PEX300×1300 |
300×1300 |
250 |
25-60 |
10-65 |
55-75 |
2000×2320×1730 |
Note: customized equipment is acceptable for us .
CE & UL requirement is acceptable for us .
