當前位置：主頁>產品列表>混合攪拌設備>雙螺旋錐形混合機（CE）

三維混合機（CE）
Three-dimensional Mixer (CE Approved)

　用途及特點
　　*SYH系列三維運動混合機為高效混合設備，可用于制藥、食品、化工、輕工、機械、電子、礦冶、國防工業、科研等企事業單位手工藝粉狀、粒狀物料的高均勻度混合。
　　* 物料在混合過程中無離心力作用，無比重偏析及分層，積聚現象，各組份可在懸珠的重量配比下均勻混合，混合率達99％以上。
　　*裝料系數高，可達到80％（普通混合機僅為40%左右）且混合時間短，是目前各種混合機中的一種較理想產品。
　　*設備結構緊湊，傳動部采用無級調速（變頻或電磁調速），操作十分方便。
　　*料筒各處為圓弧過渡，并經過精密拋光處理，達到GMP要求。
　　工作原理
　　SYH系列三維混合機的混合料桶通過二只Y型萬向節懸裝于主、從動軸端部，二只萬向節在空間周而復始地作平移、轉動和翻滾等復合運動。物料則在筒體內跟著作軸向、徑向和環向的三維復合運動。筒內的多種物料相互流動、擴散、摻雜，最后呈均勻狀態。

Uses and features
*SYH series three-dimensional motion mixer is a high-efficiency mixing device, which can be used for high uniformity mixing of powder and granular materials in the handicrafts of pharmaceutical, food, chemical, light industry, machinery, electronics, mining and metallurgy, defense industry, scientific research and other enterprises.
* The material has no centrifugal force in the mixing process, no specific gravity segregation and delamination, accumulation phenomenon, each component can be evenly mixed under the weight ratio of the suspension beads, the mixing rate is over 99%.
* High loading coefficient, up to 80% (ordinary mixer is only about 40%) and short mixing time, is an ideal product in various mixers.
* The equipment structure is compact, the transmission part adopts stepless speed regulation (frequency conversion or electromagnetic speed regulation), and the operation is very convenient.
* The barrel is circularly transitioned throughout, and is precision-polished to meet GMP requirements.
working principle
The mixing bucket of SYH series three-dimensional mixer is suspended on the ends of the main and driven shafts by two Y-joints, and the two universal joints perform complex motions such as translation, rotation and rolling in the space cycle. The material follows the axial, radial and circumferential three-dimensional composite motion in the cylinder. The various materials in the cylinder flow, diffuse, and dove with each other, and finally become uniform.

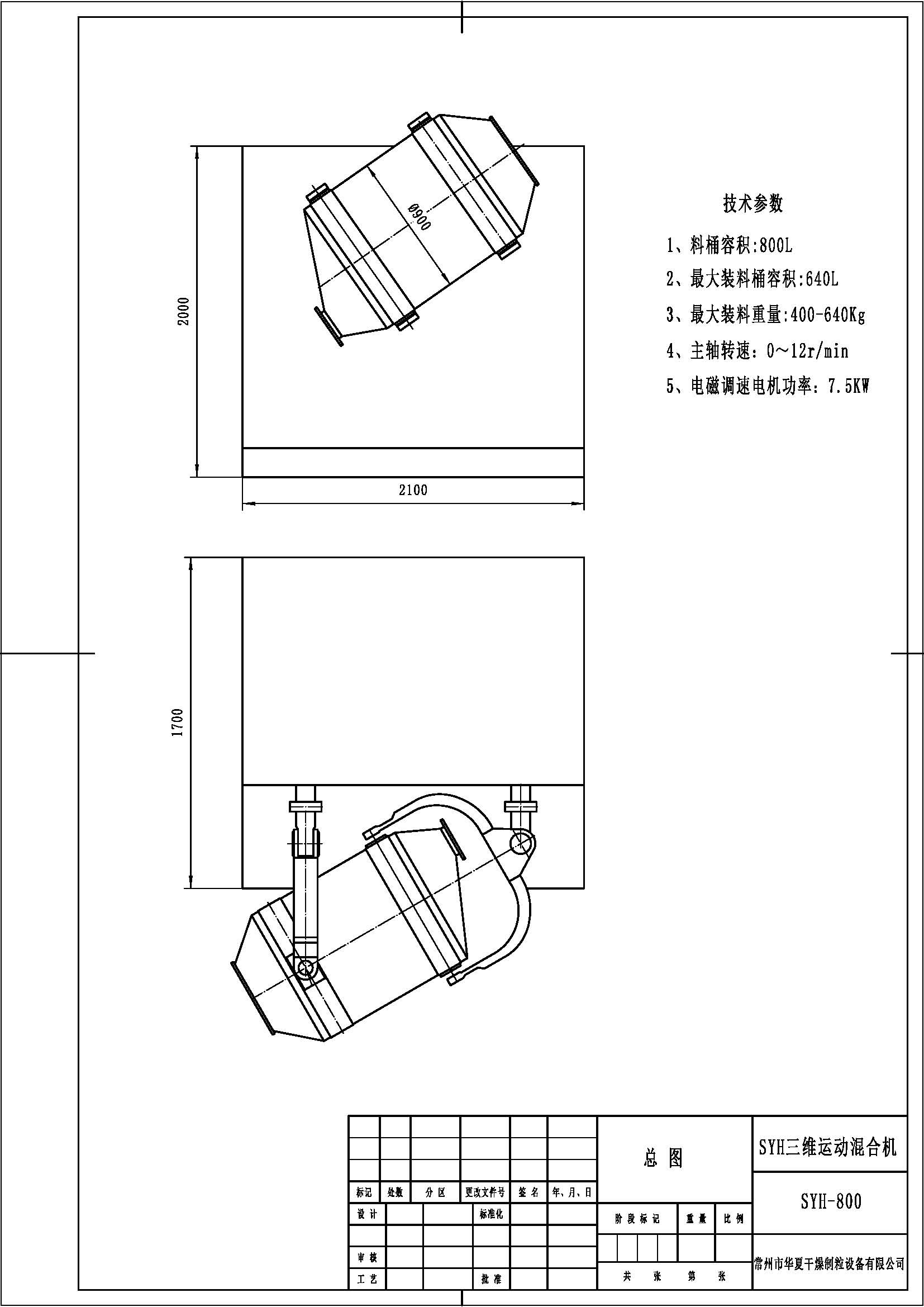

4、技術參數Technical parameter
